Grand Water Living Water System

Product Number 104

Simulate natural alpine spring water strata structure design and use natural diatomaceous earth, ion exchange resin, bio-ceramic granular layer activated carbon, Bio mineral filter, nano-silver copper-titanium mesh and other materials to form 7 layers of ‘GRAND WATER-LIVING WATER SYSTEM’. Water through layers of penetration to filter out clean and high quality live spring water. And effectively filter out various toxic substances such as chemical, heavy metals and other pollutants in the water. It enables you to enjoy drinking the natural
spring mineral water at home.

NT$.45150

Usage Method

Living Water

Please push the switch lever on the faucet of the water outlet valve up to the horizontal position, and then you can drink the water after it is discharged.

Tap Water

Please push the switching lever on the faucet of the water outlet valve upward to the vertical position, and then you can use the water after it is discharged.

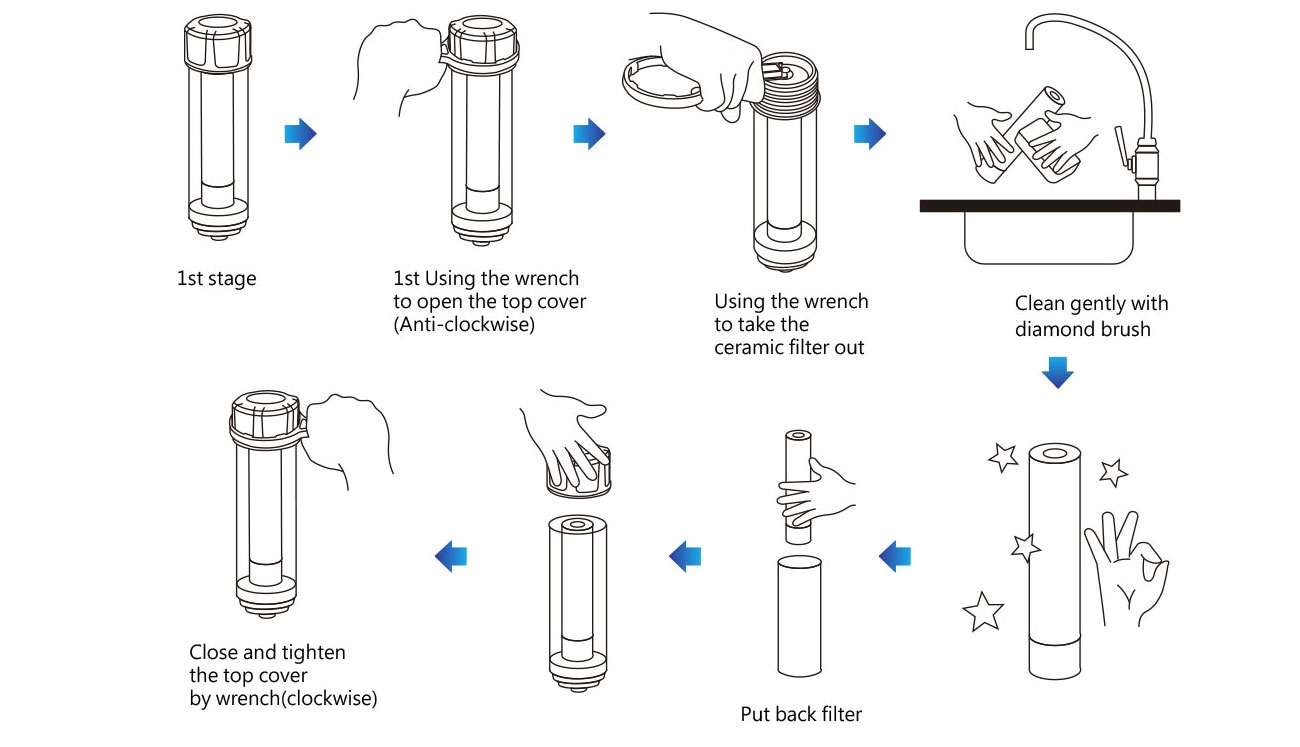

CERAMIC FILTER REPLACEMENT

The flow rate of the ceramic filter can be easily improved by simply brushing its outer surface under running water. As the top layer of ceramic and the contaminents are brushed off and flushed away, a new layer becomes available. This process can be repeated several hundred times before the ceramic material is exhausted.

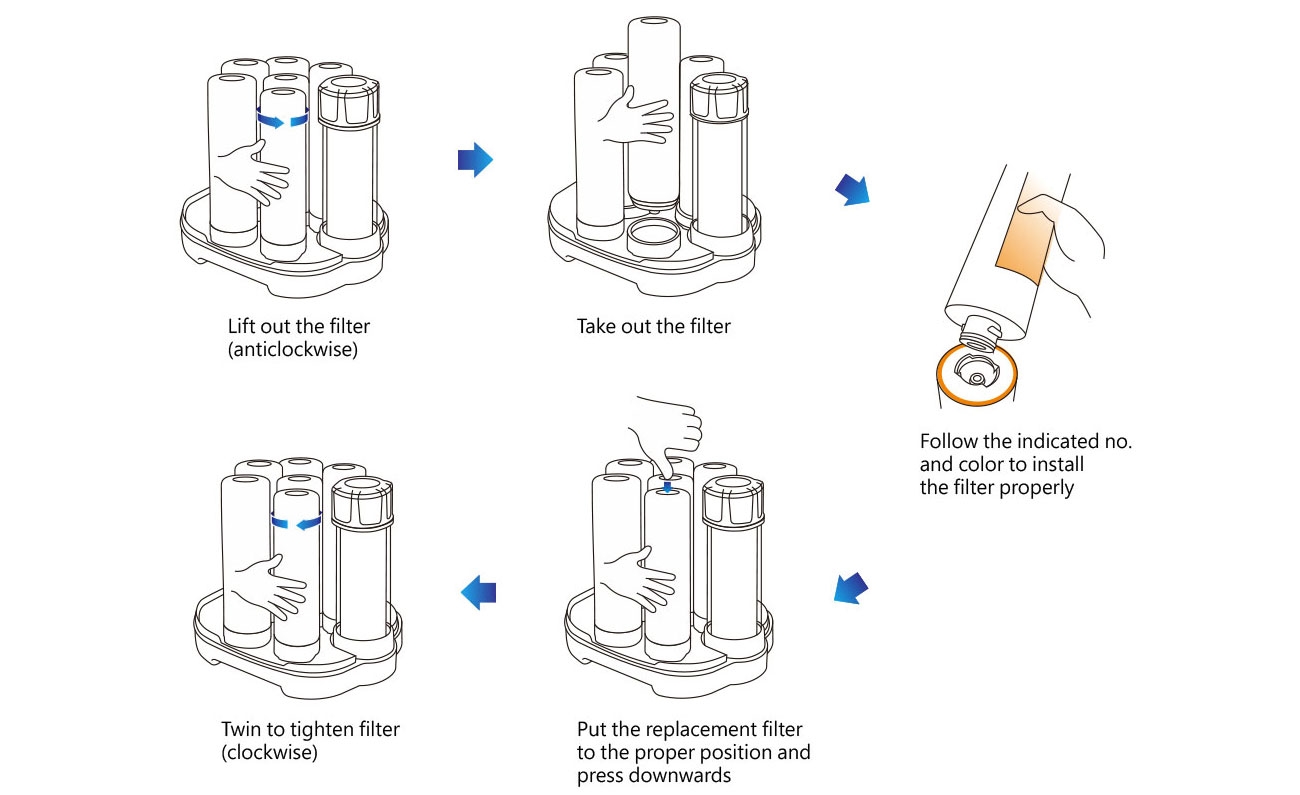

REPLACEMENT OF 2nd TO 7th Filter

Expiration date of the filter

No.	Filter	Lifespan Reference
1.	Ceramic Filter	Reusable until crack
2.	Ion-Exchange Resin(A)	Depend on the local water quality, replace after 6 months
3.	Ion-Exchange Resin(B)	Depend on the local water quality, replace after 6 months
4.	High Density Activated Carbon Block Filter	Depend on the local water quality, replace after 6 months
5.	Bio-Ceramic Conversion	3 years
6.	Hydrogen Generator	Depend on the local water quality, replace after 4000L or 1 year
7.	Green Power Filter	Depend on the local water quality, replace after 4000L or 1 year

※ In areas where water quality is compromised the change of filter may be more frequent than the lifespen reference of filter. For consultation, please contact Distributor or Agent

REMARK INSTRUCTION

1.The living water system is only for tap water at room temperature.(0C ~ 36C) Purified water is not recommended for boiling.
2.When installation of the living water system and connection of water outlet is completed, allow water to flow through the system for a few minutes before
actual use. The duration of the starting flow depends on the local water pressure. However, the recommended duration is 15 to 30 minutes.
3.If there is leakage, please follow the suggestions below:
- 3-1.Leakage at the cover of the first filter
- Disconnect the water source, open the cover and check if there is any damage, out of shape or displacement on the rubber O ring.
- 3-2.Leakage at the bottom (2nd to 7th stage)
- Disconnect the water source, turn the filter anticlockwise and re-tighten by pressing downwards and turn clockwise.
- 3-3.Leakage at the bottom of the living water system
- Open the unit base cover and look for the leakage point. If the leakage point is between the hose and the connector, push the water hose close to the connector.
- 3-4.Leakage at the connecting point between the tap and the twin divertor Refer to the attachment given with the installation support devices. (Tap design P.17~P.19)
- ※Please contact the distributor if the above leakage situation could not be resolved※
